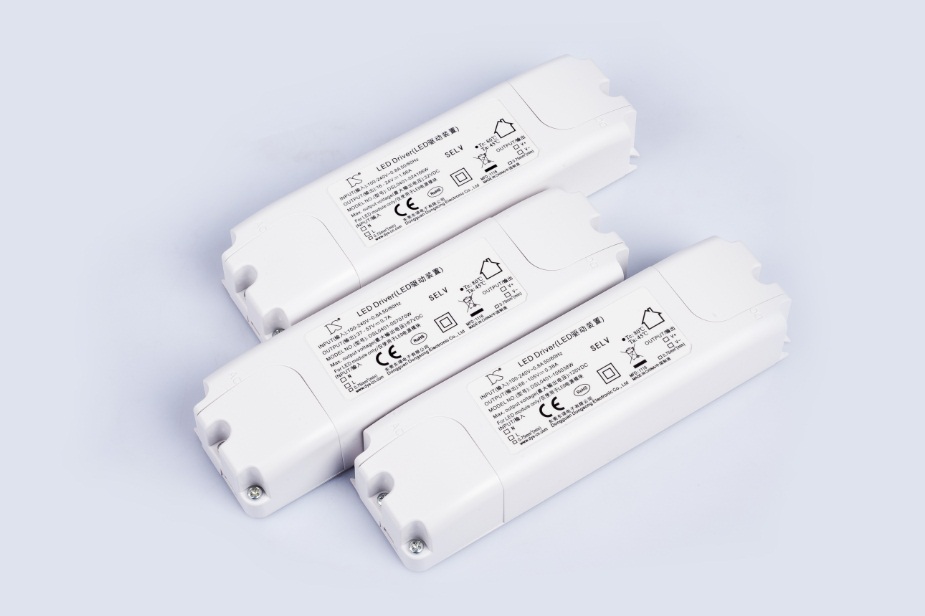

| 產品型號 | DSL0401 | |||||
| 最大功率 | 40W | |||||
| 輸出 | 輸出電壓 | 15.0-30.0V | 31.0-45.0V | 46.0-70.0V | 71.0-105.0V | |
|---|---|---|---|---|---|---|
| 輸出電流 | 0.01-1.75A | 0.01-1.29A | 0.01-0.87A | 0.01-0.56A | ||
| 紋波和噪音 | ≤600mV | ≤900mV | ≤1400mV | ≤2000mV | ||
| 電壓調節 | ±5% | |||||
| 輸出 | 電壓范圍 | 100-240VAC | ||||
| 頻率范圍 | 50-60Hz | |||||
| 環境 | 操作溫度 | -25°C to +45°C | ||||
| 儲藏溫度 | -25°C to +80°C | |||||
| 操作濕度 | 10%-90% | |||||
| 安規 | 安規標準 | 61347 | ||||
| 其它 | 使用壽命 | >50,000 hours at 80%load and 25°C | ||||
| 尺寸 | 155.0*44.0*31.0mm | |||||
